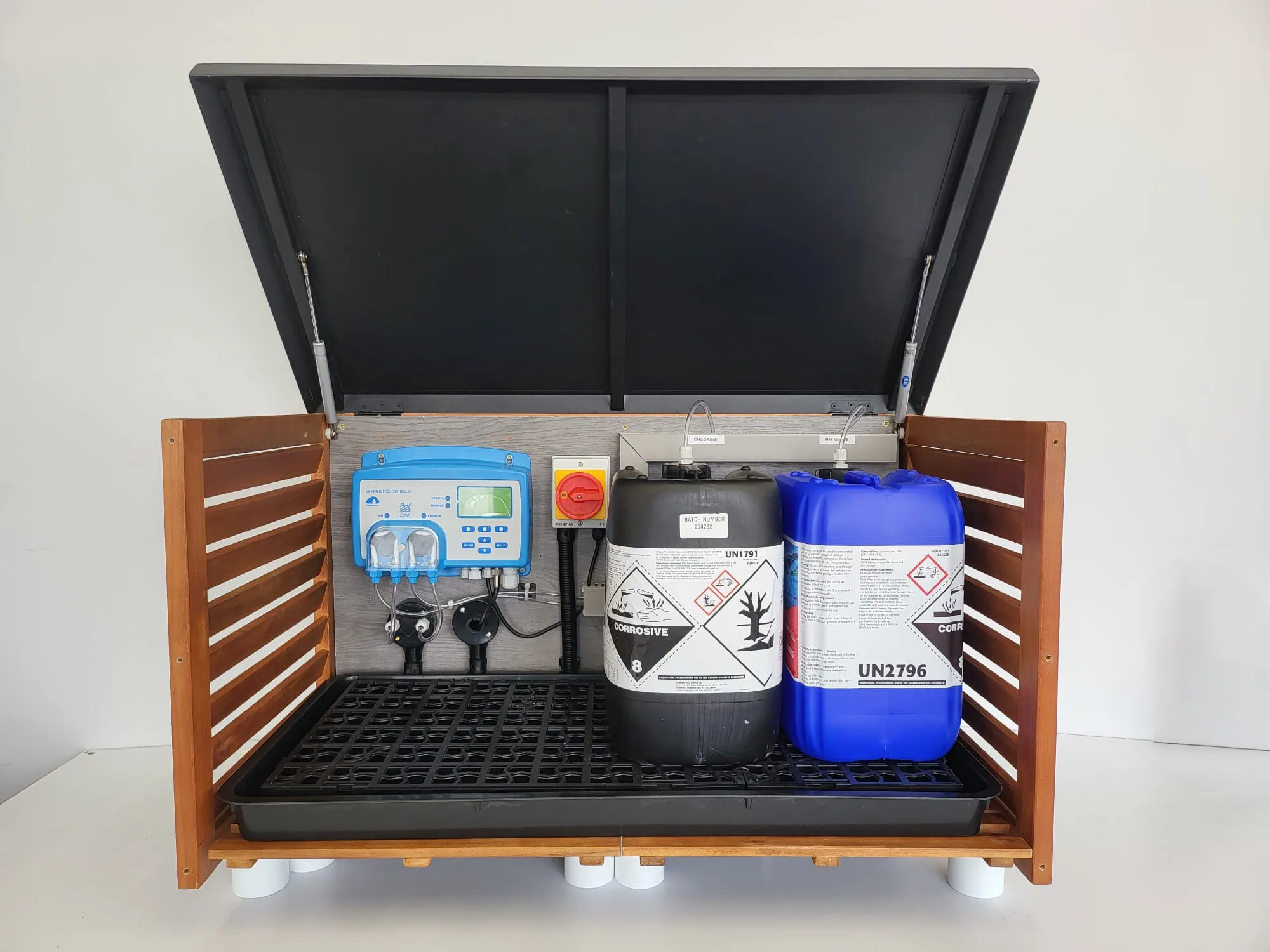

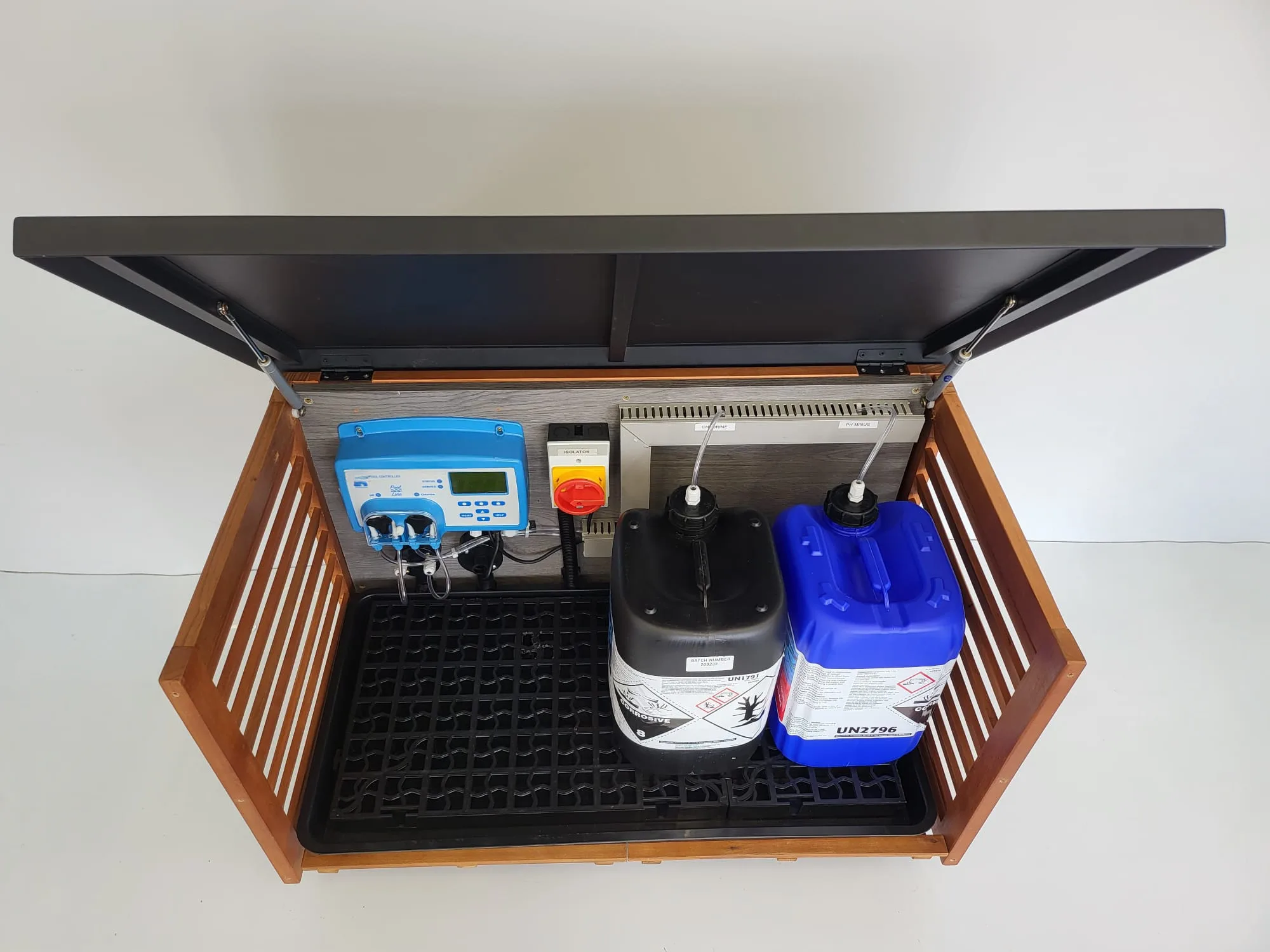

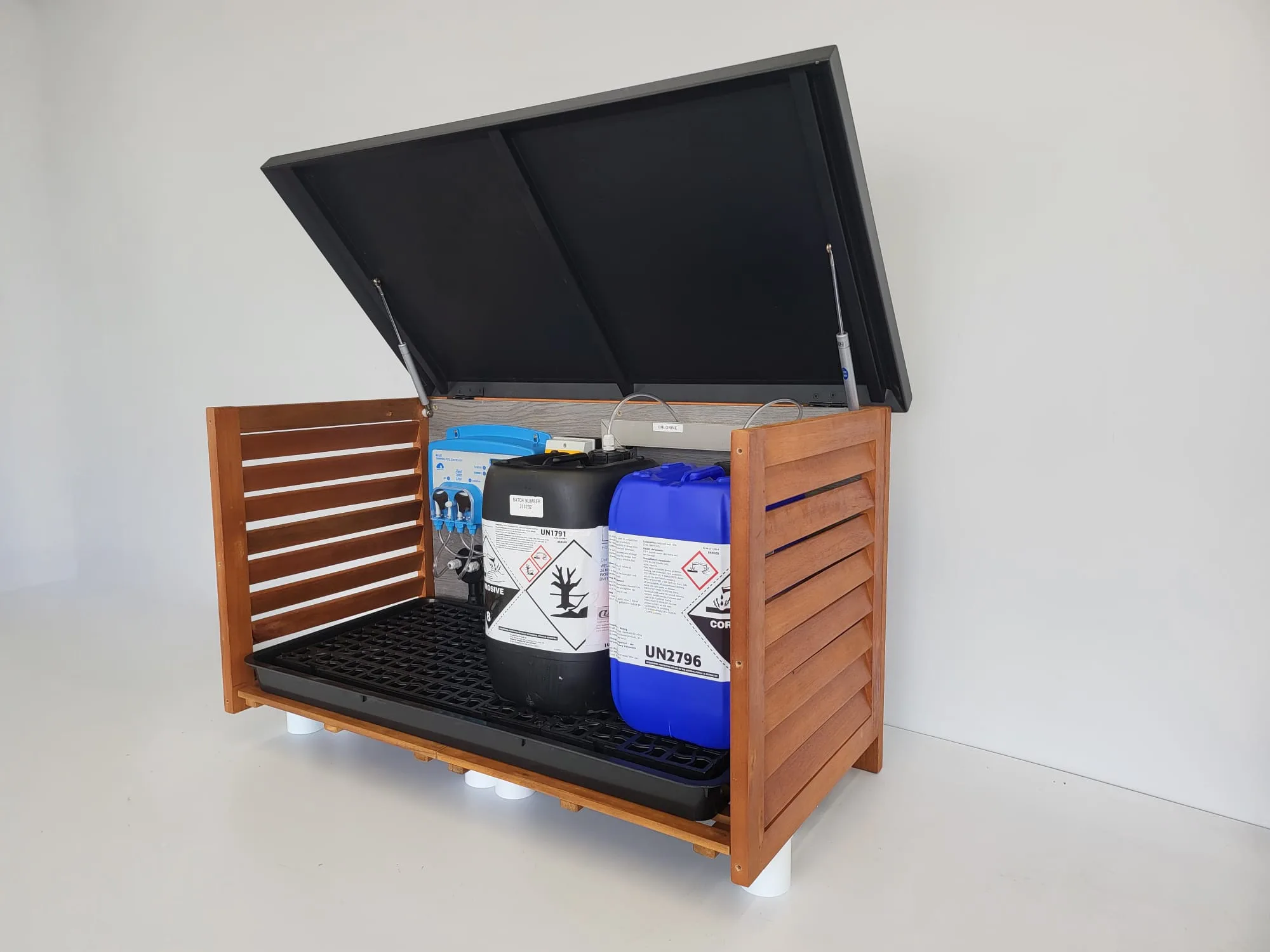

Hydrospas Automatic Chemical Dosing System
Revolutionising the Holiday Let Business. Test and maintain your hot tub water remotely! No more physical tests and balancing of Ph, Bromine / Chlorine levels twice a day. Now it can all be done via the Hydrospas Automatic Dosing System while saving all historic and real time data on your computer AUTOMATICALLY – 24hours a day.
- Hassle-free water management
- Safe and hygienic water
- Conforms to HSG282 Guidelines
- Automatic and precise chemical balancing of Ph and Bromine / Chlorine
- Remote Connectivity
- Reduced chemical costs and reliable results
- Ensures customer satisfaction: balanced water
- Real time and historic data for all modules
- Graphic and text logs for trend analysis
- Alarm and status updates
- Email & text alerts for chemical status
- Unlimited modules on an account

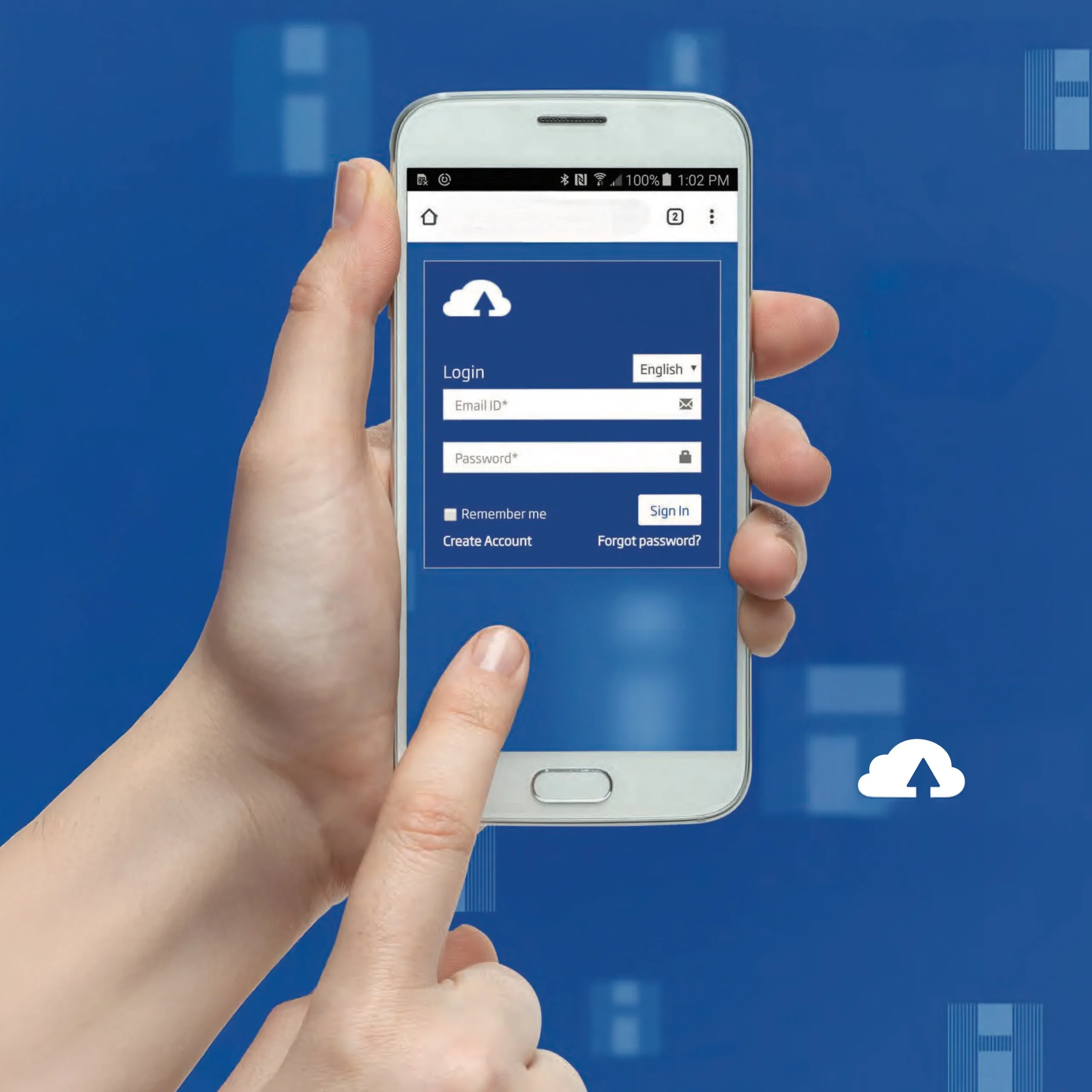

- Access from any web enabled device
- Saves on labour and maintenance costs
* Price is subject to survey
Description
Safe and Clean Hot Tub Water
For pools and hot tubs, getting the pH and chlorine levels just right can be quite a hassle.

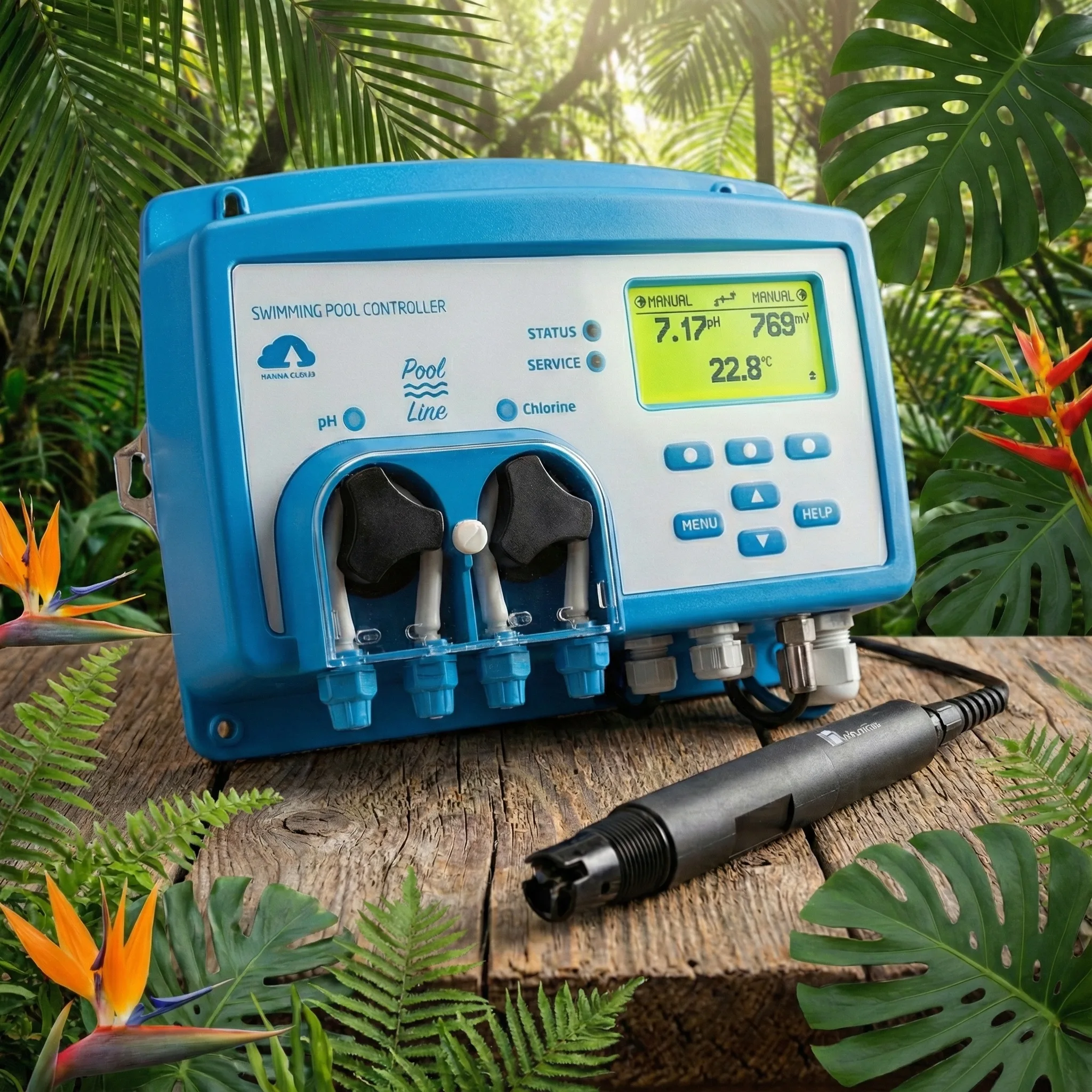

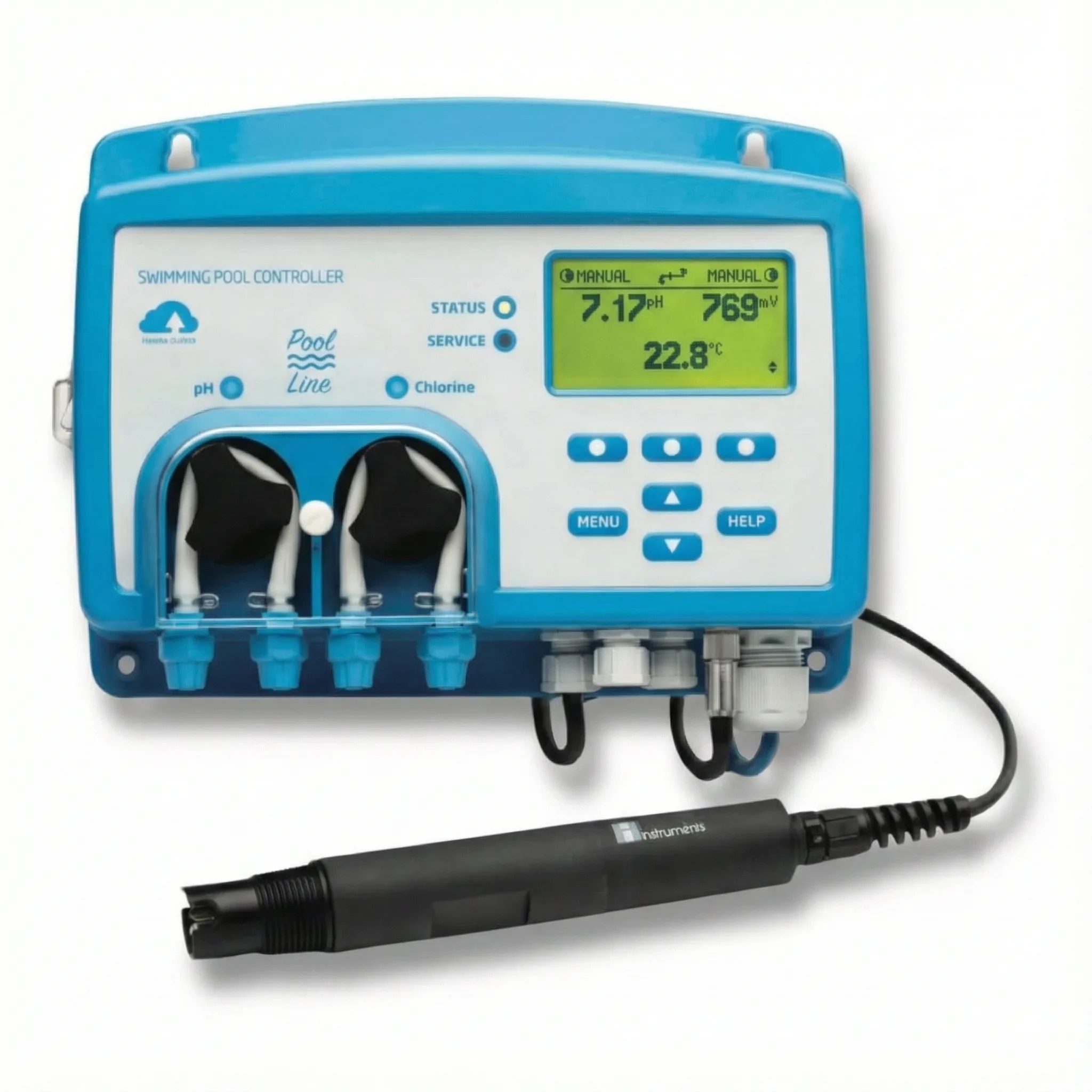

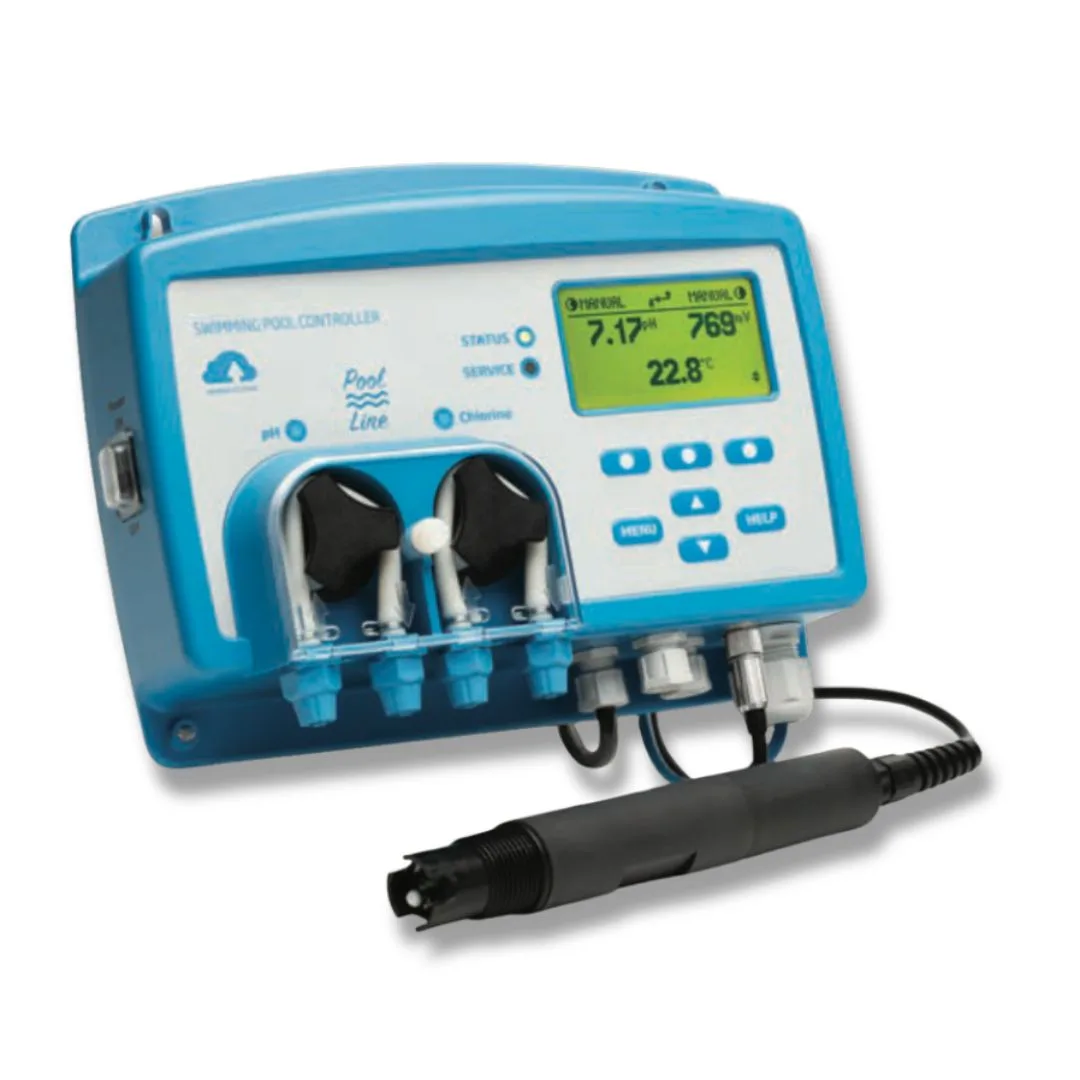

The Wellis Auto Dosing Controllers take the worry out of maintaining proper pH and chlorine levels by handling it automatically.
Readings are taken and stored in the on-board memory every 10 seconds, and when adjustments are needed, the controller adds the precise amount of chemicals to keep your water clean, safe, and free from algae and bacteria.
Our controllers also adapt to tub usage and bather volume, helping you save money on expensive chemicals while offering more accurate control than manual dosing.
Specifications
.spec-table-wrap { font-family: “URW DIN”, “URW DIN Light”, system-ui, -apple-system, Segoe UI, Roboto, Arial, sans-serif; }
.spec-table {
width: 100%;
border-collapse: collapse;
border: 1px solid #e7edf1;
border-radius: 12px;
overflow: hidden;
box-shadow: 0 2px 6px rgba(0,0,0,.06);
}
.spec-table caption{
text-align:left;
font-weight:600;
letter-spacing:.2px;
padding:14px 16px;
background:#f7fbfd;
color:#0d2a33;
border-bottom:1px solid #e7edf1;
}
.spec-table th,
.spec-table td{
padding:12px 16px;
vertical-align:top;
font-size:15px;
line-height:1.5;
color:#24323a;
}
.spec-table thead th{
background:#07A9D5;
color:#fff;
font-weight:600;
text-transform:uppercase;
letter-spacing:.4px;
border:0;
}
.spec-table tbody tr:nth-child(even){ background:#fbfdfe; }
.spec-table tbody tr + tr { border-top:1px solid #edf3f6; }
/* Section headers inside tbody */
.spec-group th{
background:#f4fbff;
color:#093845;
border-left:4px solid #07A9D5;
font-weight:700;
letter-spacing:.3px;
}
.spec-key{ width:38%; font-weight:500; color:#31424b; }
.spec-val{ width:62%; }
/* Small screens: keep table scrollable rather than stacking */
.spec-table-wrap{ overflow-x:auto; }
| Parameter | Specification |
|---|---|
| Range | |
| pH | 0.00 to 14.00 pH |
| Redox (ORP) | ±2000 mV |
| Temperature | -5.0 to 105.0 °C |
| Resolution | |
| pH | 0.01 pH |
| Redox (ORP) | 1 mV |
| Temperature | 0.1 °C |
| Accuracy | |
| pH | ±0.05 pH |
| Redox (ORP) | ±5 mV |
| Temperature | ±1 °C |
| pH calibration | Automatically at 2 points |
| Temperature compensation | Automatically from -5.0 to 105.0 °C |
| Alarm | High and low, separately adjustable for each parameter |
| pH and ORP control | Proportional with adjustable set point and proportional band, delay time and overdosing protection |
| Analogue outputs | Three |
| Memory | Measurements pH, ORP, temperature, data (error, alarm, power failure) |
| Pump control | Manually, from 0.5 to 3.5 l/h for each pump |
| Safety | Programming and calibration password protected |
| Connection | USB / Ethernet |
| GLP | pH / redox / °C |
| Power | Adapter 220 V |
| Controller dimensions | 245 × 188 × 55 mm |
| Panel dimensions | Between 7.0 and 7.6., Between 7.2 and 7.4 |
| Weight/td> | 1700g-3320g |
